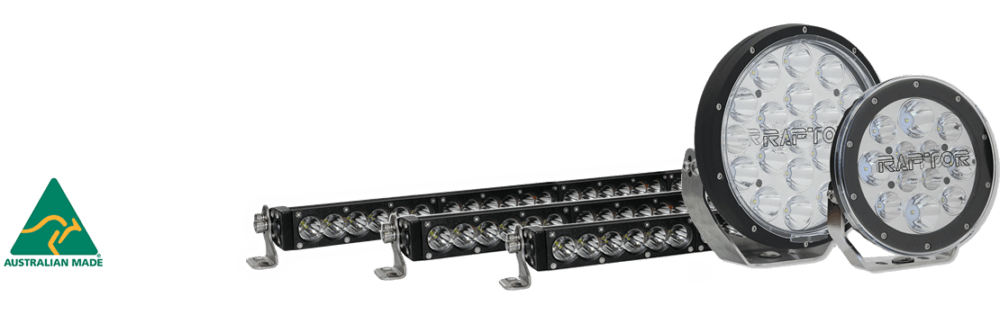

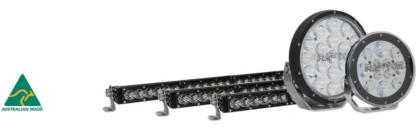

RAPTOR LED LIGHT BARS AND DRIVING LIGHTS



Raptor LED Lighting

SKU: RAPTOR Categories: ,

Description

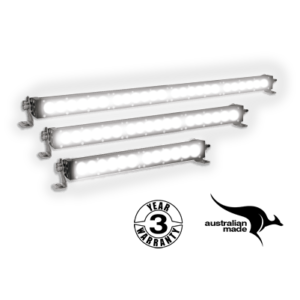

RAPTOR LIGHT BAR SPECIFICATIONS

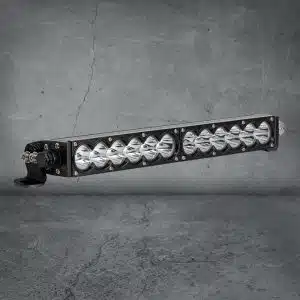

Raptor 60W LED Light Bar

SPECIFICATIONS 60W
Wattage 60 Watt
Light Source 12 x 5W Cree L.E.D’s
Light Output – Raw 7550 Lumens/lamp
Light Output – Effective 5790 Lumens/lamp
Voltage 9V-32V DC
Current Draw 4.4A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP67
Connector Type 2 Pin standard Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Size 370 x 51 x 73mm
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP060LB

Raptor 90W LED Light Bar

SPECIFICATIONS 90W
Wattage 90 Watt
Light Source 18 x 5W Cree L.E.D’s
Light Output – Raw 11340 Lumens/lamp
Light Output – Effective 8650 Lumens/lamp
Voltage 9V-32V DC
Current Draw 6.6A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP67
Connector Type 2 Pin standard Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Size 500 x 51 x 73mm
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP090LB

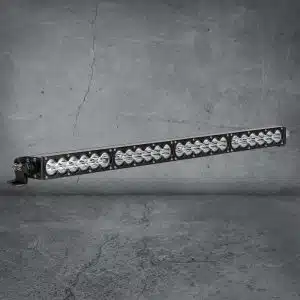

Raptor 120W LED Light Bar

SPECIFICATIONS 120W
Wattage 120 Watt
Light Source 24 x 5W Cree L.E.D’s
Light Output – Raw 15120 Lumens/lamp
Light Output – Effective 11500 Lumens/lamp
Voltage 9V-32V DC
Current Draw 8.8A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP67
Connector Type 2 Pin standard Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Size 630 x 51 x 73mm
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP120LB

Raptor 180W LED Light Bar

SPECIFICATIONS 180W
Wattage 180 Watt
Light Source 36 x 5W Cree L.E.D’s
Light Output – Raw 22680 Lumens/lamp
Light Output – Effective 17300 Lumens/lamp
Voltage 9V-32V DC
Current Draw 13 A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP67
Connector Type 2 Pin standard Deutsch
Housing Extruded Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Size 1000 x 51 x 73mm
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP180LB

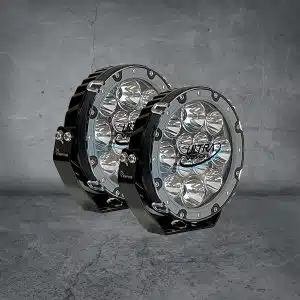

RAPTOR DRIVING LIGHT SPECIFICATIONS

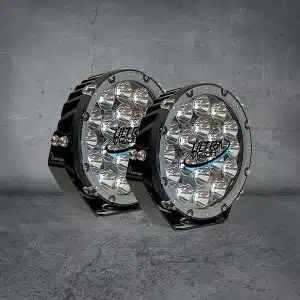

Raptor 60W & 110W Driving Lights

SPECIFICATIONS 60W
Wattage 60 Watt
Light Source 19 x 3W Cree L.E.D’s
Light Output – Raw 7600 Lumens/lamp
Light Output – Effective 6088 Lumens/lamp
Voltage 9V-32V DC
Current Draw 4.1A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP68
Connector Type 2 Pin standard Deutsch
Housing Die-Cast Alloy
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Diameter 170mm
Net Weight 2.3kg
Mounting Suitable All Types
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP060DL
SPECIFICATIONS 110W
Wattage 110 Watt
Light Source 37 x 3W Cree L.E.D’s
Light Output – Raw 15220 Lumens/lamp
Light Output – Effective 12180 Lumens/lamp
Voltage 9V-32V DC
Current Draw 8.3A @ 13.5V
Operating Temp. -40°C to +80°C
Waterproof Rating IP68
Connector Type 2 Pin standard Deutsch
Housing Die-Cast Alloy
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 5700K or 4000K
LIfespan 50’000 Hours
Diameter 220mm
Net Weight 3.2kg
Mounting Suitable All Types
Beams Available Combination
Warranty 3 Years
PART NUMBERS
Combination Beam RAP110DL

INTENSE LIGHT AT NIGHT

Protect your investment with our range of accessories including Anti-Theft Lock Nuts in a range of thread sizes to suit all our lamps, Universal Bar Clamps to fit all our light bar sizes and Harnesses for the entire range of light bars and driving lights.
