• 6.8” Capacitive Touch-Screen
• Apple CarPlay (Wireless or Wired Connection)
• Android Auto (Wireless or Wired Connection)
• Dual Phone Bluetooth
• WebLink®/WebLink® Cast
• Reverse Camera Input
• 3 x 4V Pre-Outs
• New 1-DIN Short Chassis Design

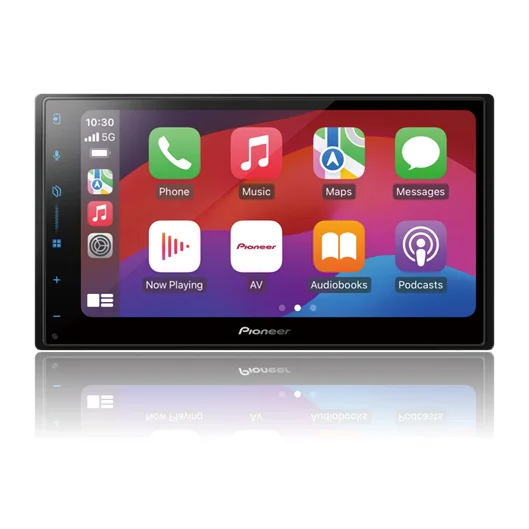

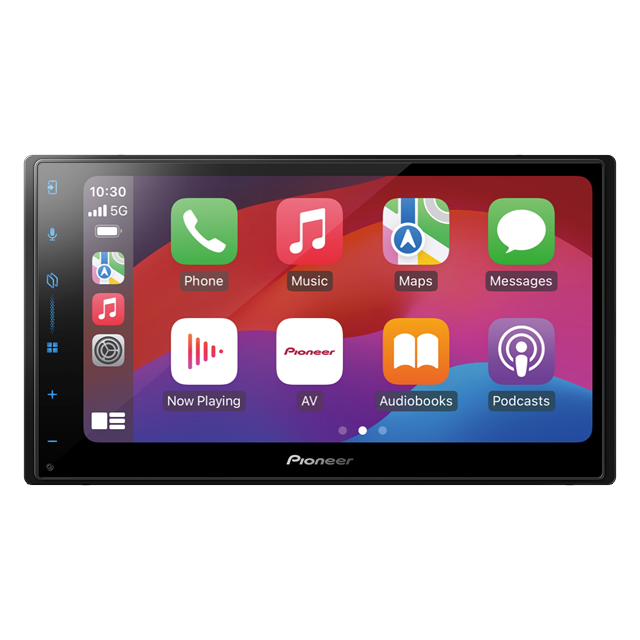

Getting the latest technology doesn’t have to break the budget with the Pioneer DMH-A5650BT featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Bluetooth® with dual phone function, plus reverse camera input.

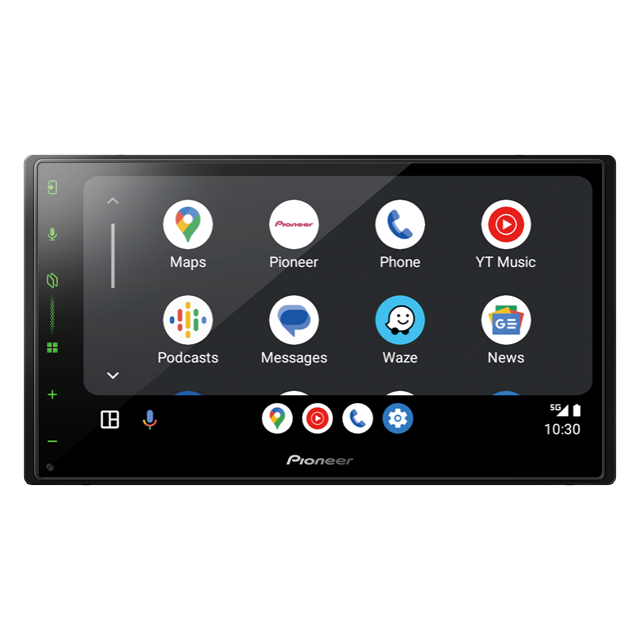

Choose from a host of entertainment options, including USB with Full HD video playback supported**, AM/FM tuner, or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

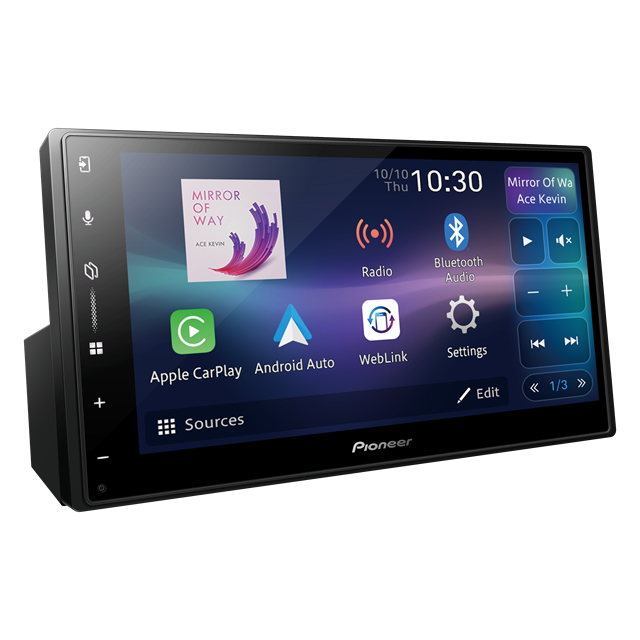

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer DMH-A5650BT is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

Screen Size 6.8″
Resolution WVGA (800 x 480)
24-bit True Color Panel No
Touchscreen Capacitive
Smart User Interface No
LED Backlight Yes
Colour Customisation 5 Key Illumination Colors
Built-in Bluetooth Yes Ver. 5.3
Dual Phone Connection Yes
Hands-Free Profile (HFP) Yes
Audio/Video Remote Control Profile (AVRCP) Yes
Advanced Audio Distribution Profile (A2DP) Yes
Secure Simple Profile (SSP) Yes
Serial Port Profile (SPP) Yes
Smartphone Pairing Memory 5 Devices
AM/FM Tuner Yes
DAB+ Tuner No
Presets 18 FM, 12 AM
Best Station Memory (BSM) Yes
Local Seek Tuning Yes
Supertuner® IIID No
Apple CarPlay™ Yes (Wireless or wired)
Android Auto™ Yes (Wireless or wired)
Alexa Built In No
CarAVAssist App Compatible No
Spotify® Control No
WebLink® Yes
Live Information No
Siri® Eyes Free Yes
Web Browser No
CD/CD-R/CD-RW Playback No
DVD/DVD-R/RW/DVD-Video Playback No
MP3 Audio Playback USB
WMA Audio Playback USB
AAC Audio Playback USB
WAV Audio Playback USB
FLAC Audio Playback USB
MPEG-4 Video Playback USB
DivX Video Playback No
WMV Video Playback USB
JPEG Photo Slideshow Viewer USB
Full HD Video Playback Yes
Hi-Res Audio Certified No
RCA Pre-outs 3 pair 4v (front/rear/subwoofer)
Built-in Amplifier MOSFET 4 x 50W
Auto EQ & Time Alignment (CD-MC20 required) No
Specialized Audio Parts No
D/A Converter
Crossover Network HPF/LPF
3-Way Audio Network Mode Yes
Subwoofer Control Yes
Advanced Sound Retriever No
Manual Time Alignment Yes
Equalizer 13-Band GEQ
Wi-Fi Connectivity Yes
USB Single (Rear)
AUX Rear (Audio/Video)
Reverse Camera Input Yes
Parking Assist Guidelines Yes
Wired Remote Input Yes (Learning)
Composite Video Output Yes
Remote Control No
Warranty 1 Year
Chassis Size 1 DIN (125mm Depth / 2 DIN Screen)
